7.2 Panel
Home
7.2 Panel
Roofing

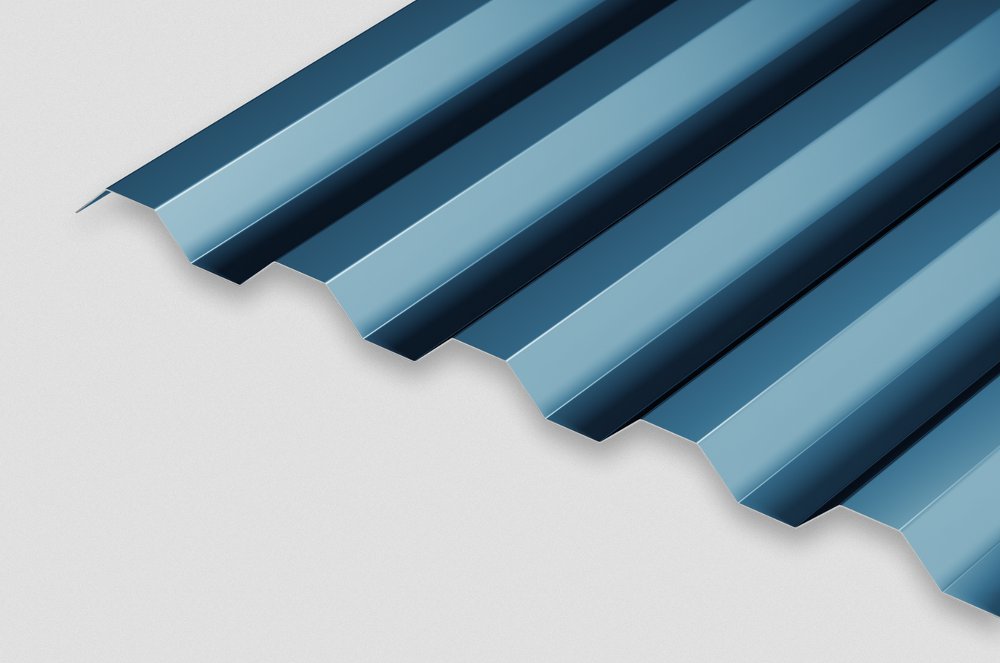

When your project requires a commercial or industrial exposed-fastener metal panel, the 7.2 Ribbed Panel is a reliable and versatile solution.
Its symmetrical rib profile provides excellent spanning and cantilever strength, making it a smart choice for carports, walkway canopies, and open structures. The straightforward installation process helps reduce build time and keeps projects moving efficiently.
Designed for both roof and wall applications, the 7.2 panel combines long-term durability with strong structural performance.
Features
- Coverage Width: 36”
- Minimum Roof Slope: ½:12
- Panel Attachment: Exposed Fastening System
- Gauge:
- 24 gauge (standard),
- 22 gauge (optional)
- Finish:
- Smooth (standard),
- embossed (optional)
- Coating Options: Premium corrosion-resistant coatings available
- Rib Spacing: 7.2″ on center
- Rib Height: 1-1/2″
- Available Lengths: 5′-0″ to 50′-0″
This panel delivers a balance of strength, flexibility, and ease of installation, making it well suited for a wide range of commercial, industrial, and architectural applications.
Technical Resources & Downloads
Metal Warehouse Inc. provides comprehensive technical documentation to support proper specification and installation of the 7.2 Panel system, ensuring accuracy, performance, and compliance across roofing and wall applications.
Available resources include:
- Product data sheets detailing panel profiles, gauges, and finishes
- Structural and load-span tables to support engineering and design requirements
- CAD drawings and technical details for accurate planning and integration
For assistance in selecting the appropriate 7.2 Panel configuration or for project-specific engineering support, our team is available to help ensure your roof or wall system meets all structural, performance, and code requirements.
