Trim & Flashing Catalog
Every available trim and flashing profile, flip through the full book below.
All Available Options

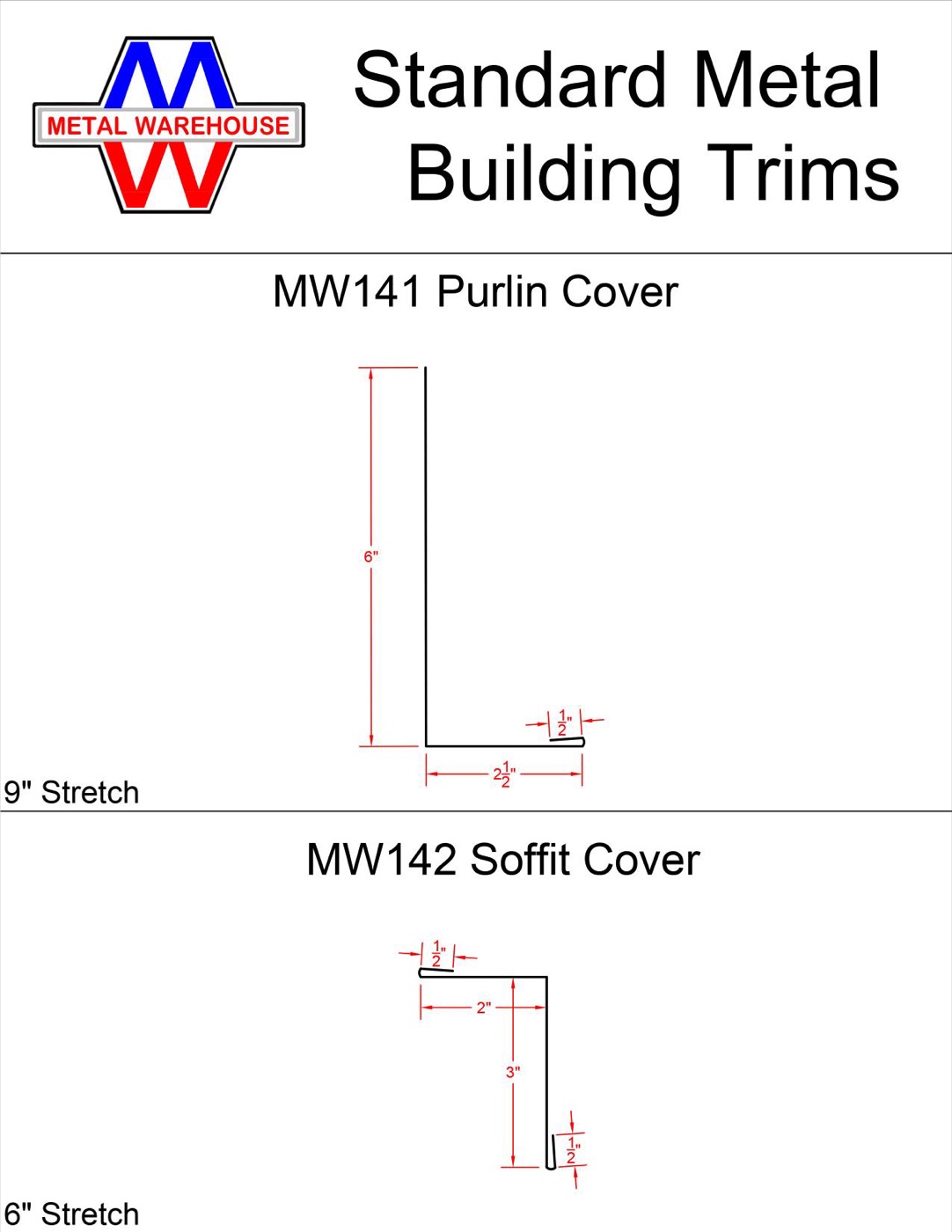

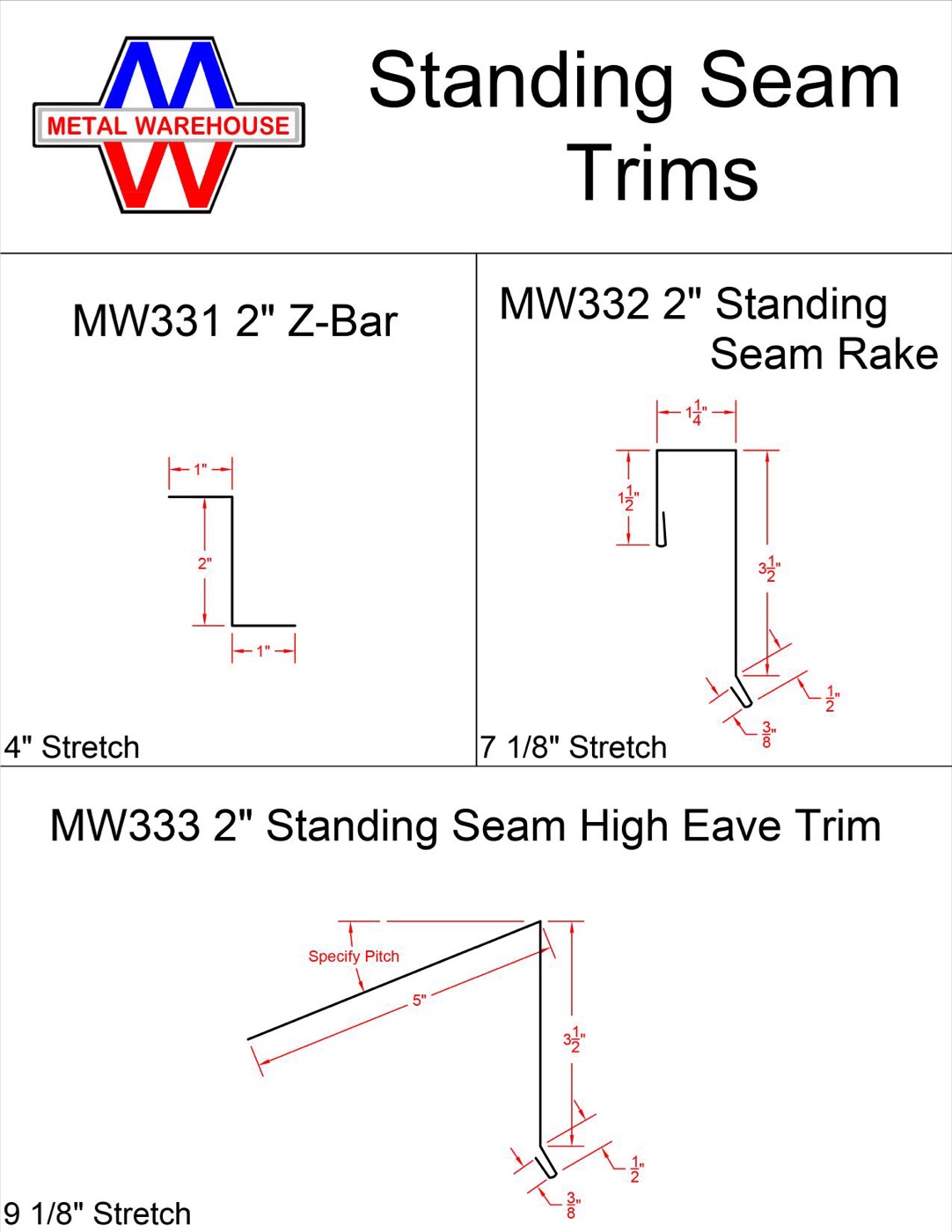

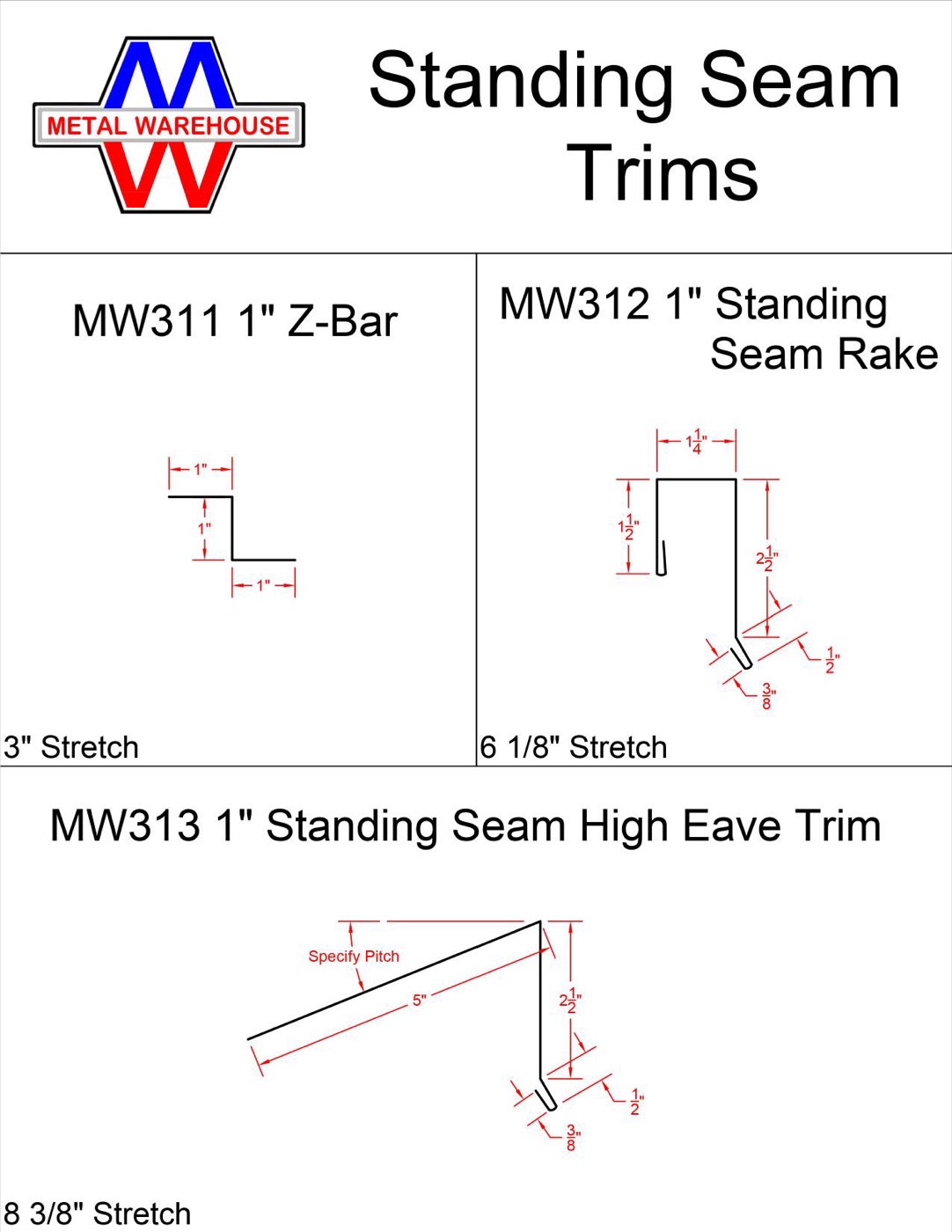

The Full Trim Book
Ridge cap, rake, eave, gable, corner, J-channel, drip edge, and custom profiles. Use the arrows or thumbnails to flip through all 23 pages, or download the PDF.
Need a trim not shown here? We fabricate custom profiles in-house.
Metal Trim & Flashing, Made to Finish the Job Right

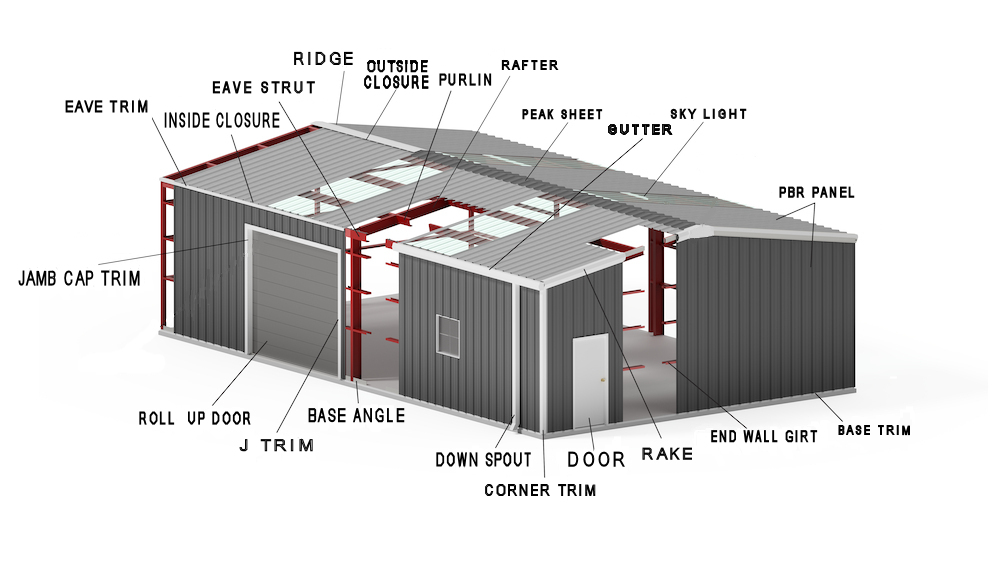

Trim and flashing are the finishing pieces of a metal roof or wall: the parts that close off edges, seal transitions, and shed water away from the seams. Good trim is what makes a metal building look sharp and stay watertight for decades. Metal Warehouse Inc. stocks and fabricates the full range of profiles in the same colors and gauges as our panels, so every piece matches.

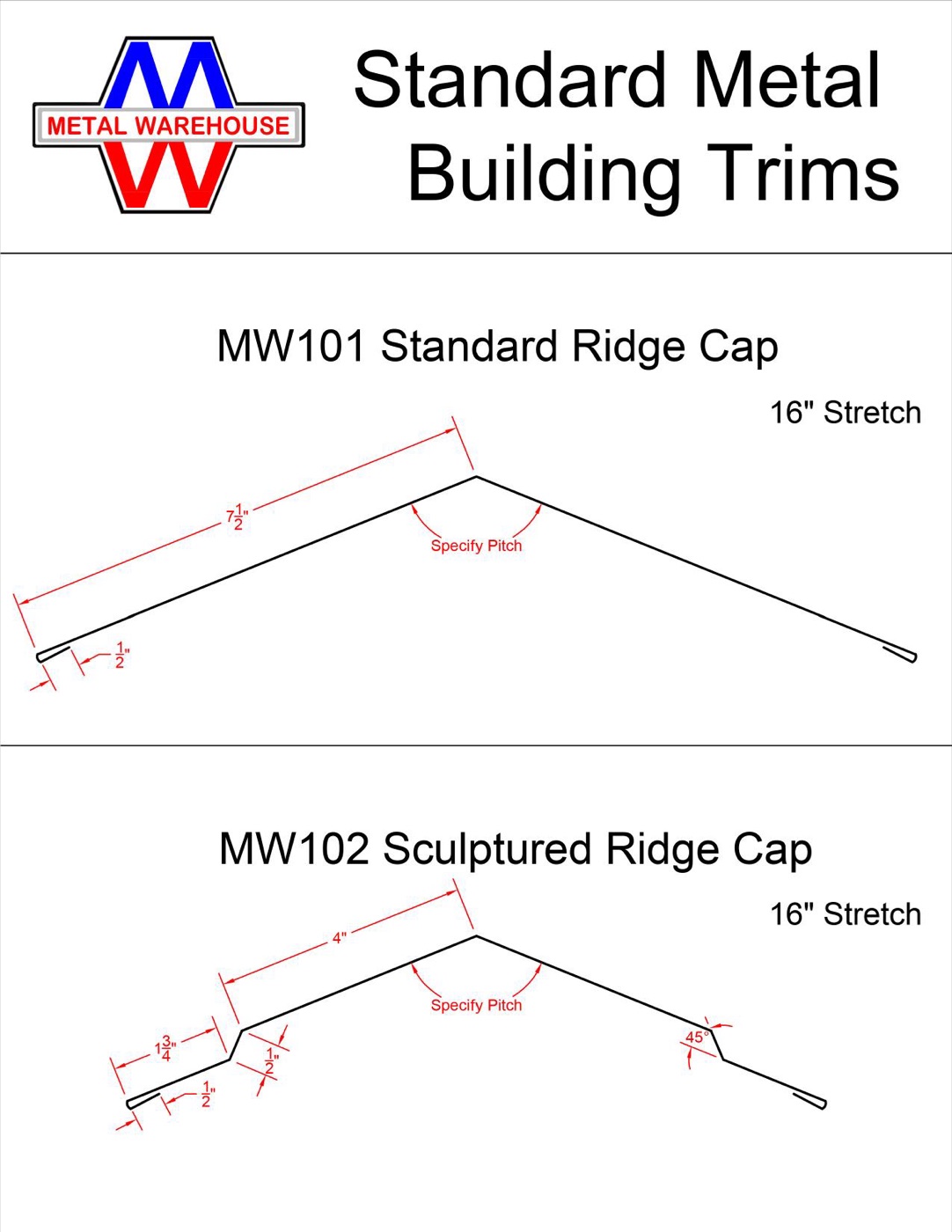

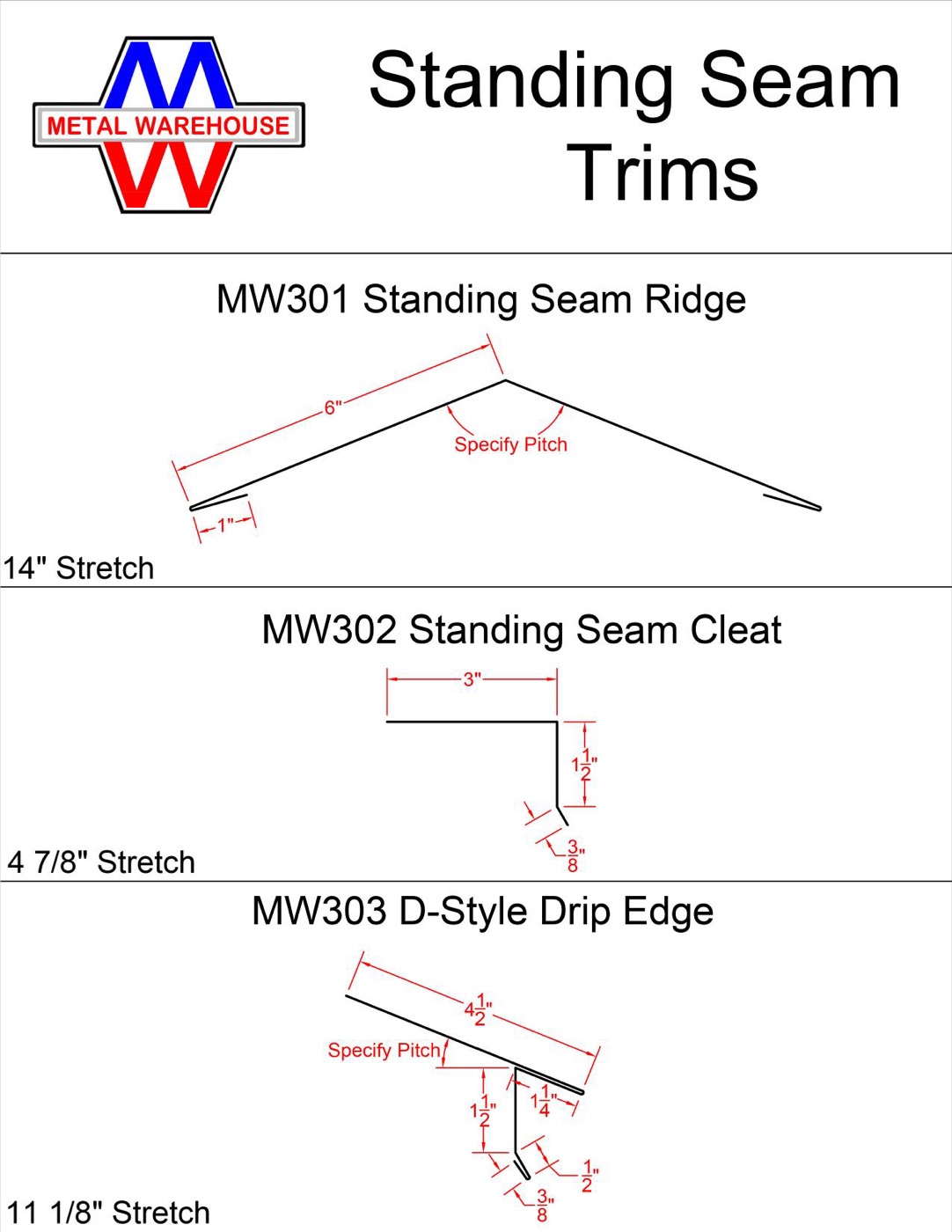

Ridge Cap
Caps the peak where two roof slopes meet, sealing the ridge line against wind-driven rain.

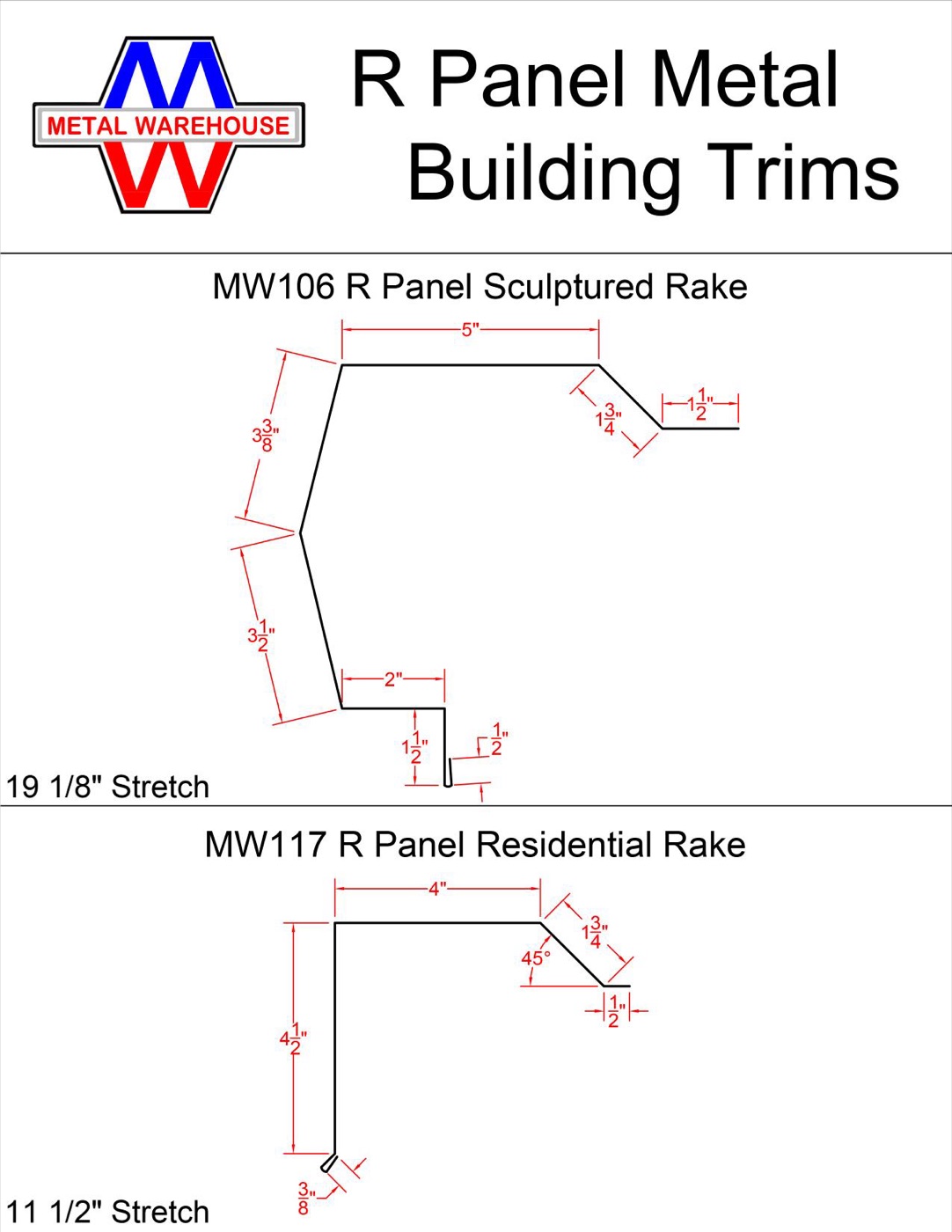

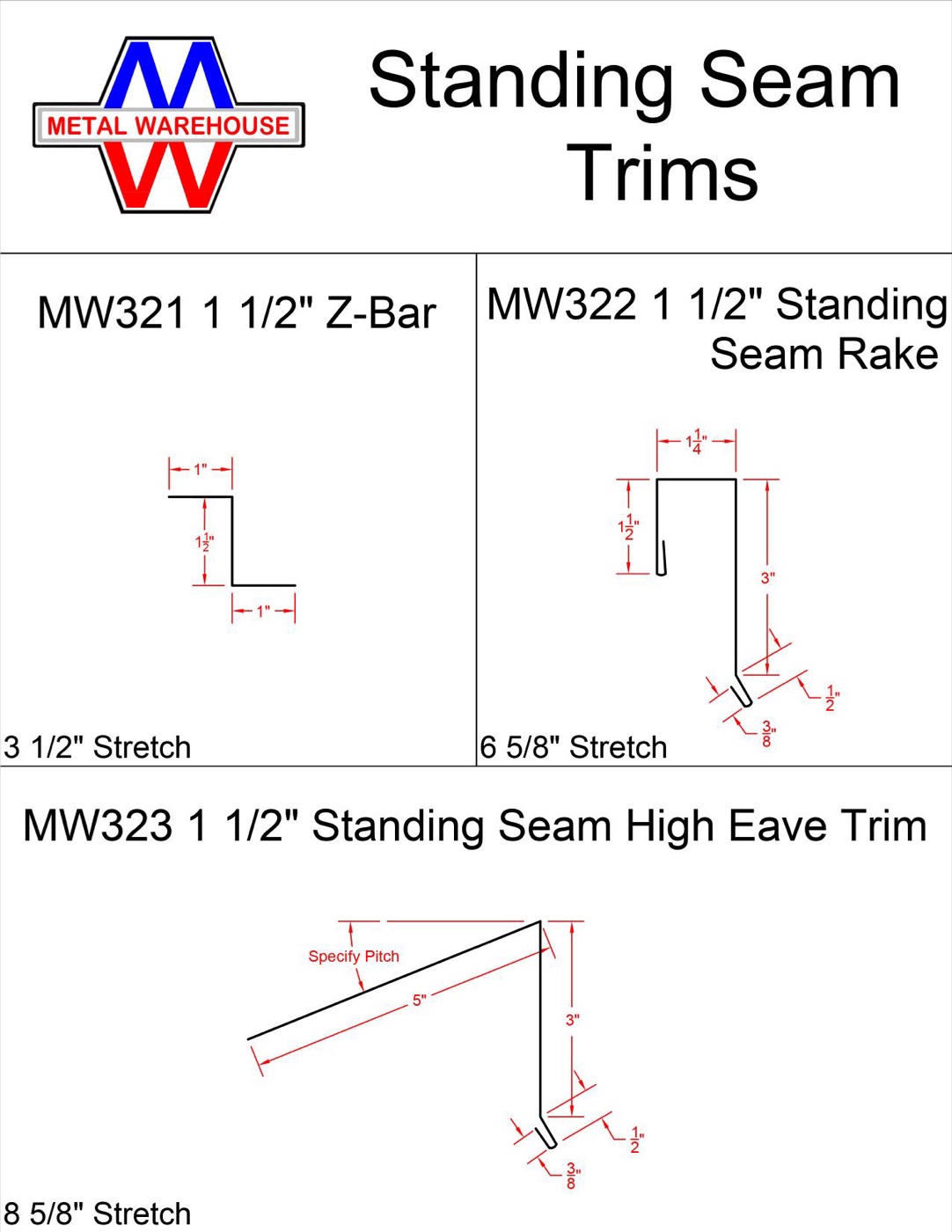

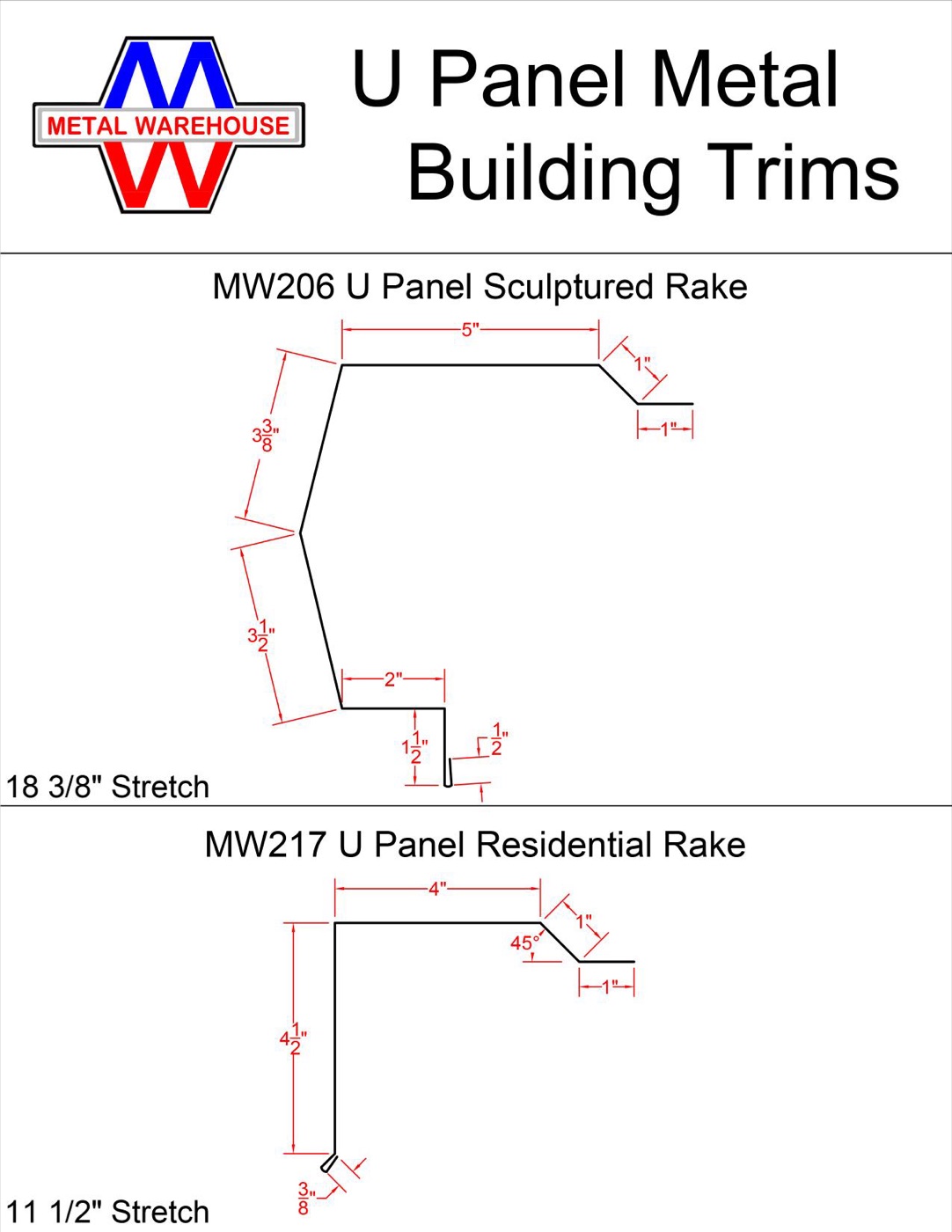

Rake & Gable
Runs down the sloped roof edge at the gable end for a clean, finished, weather-tight border.

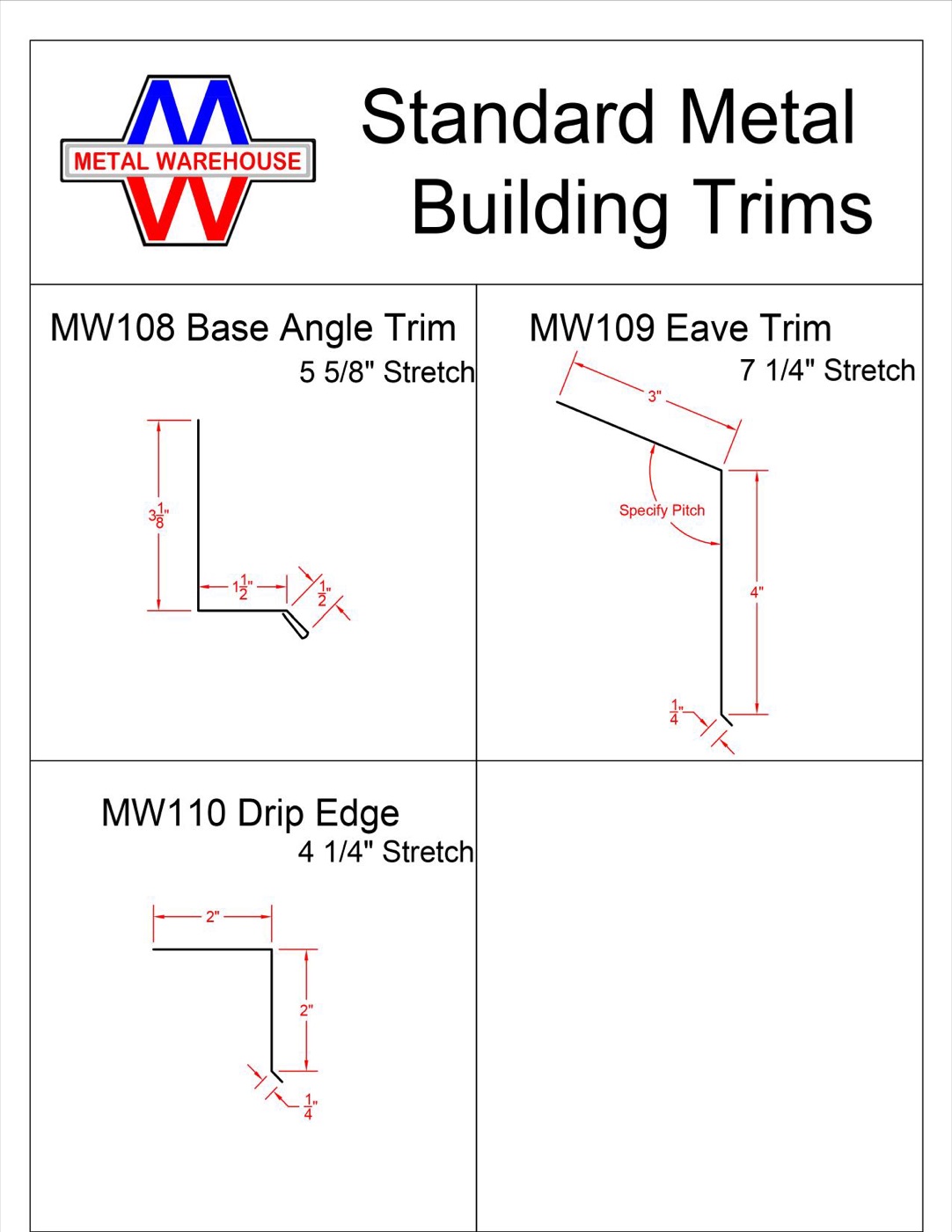

Eave & Drip Edge
Directs runoff off the roof edge and away from the wall and fascia below.

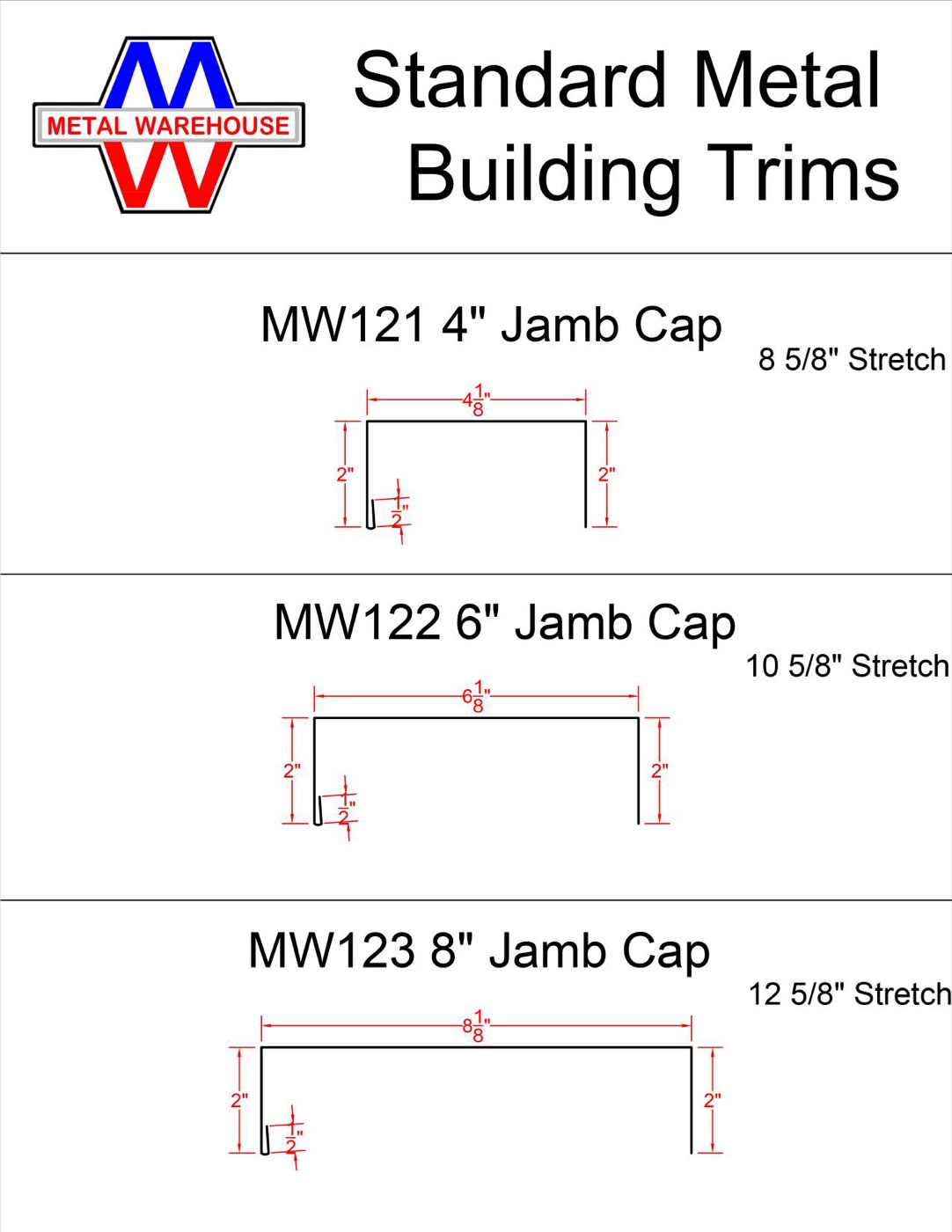

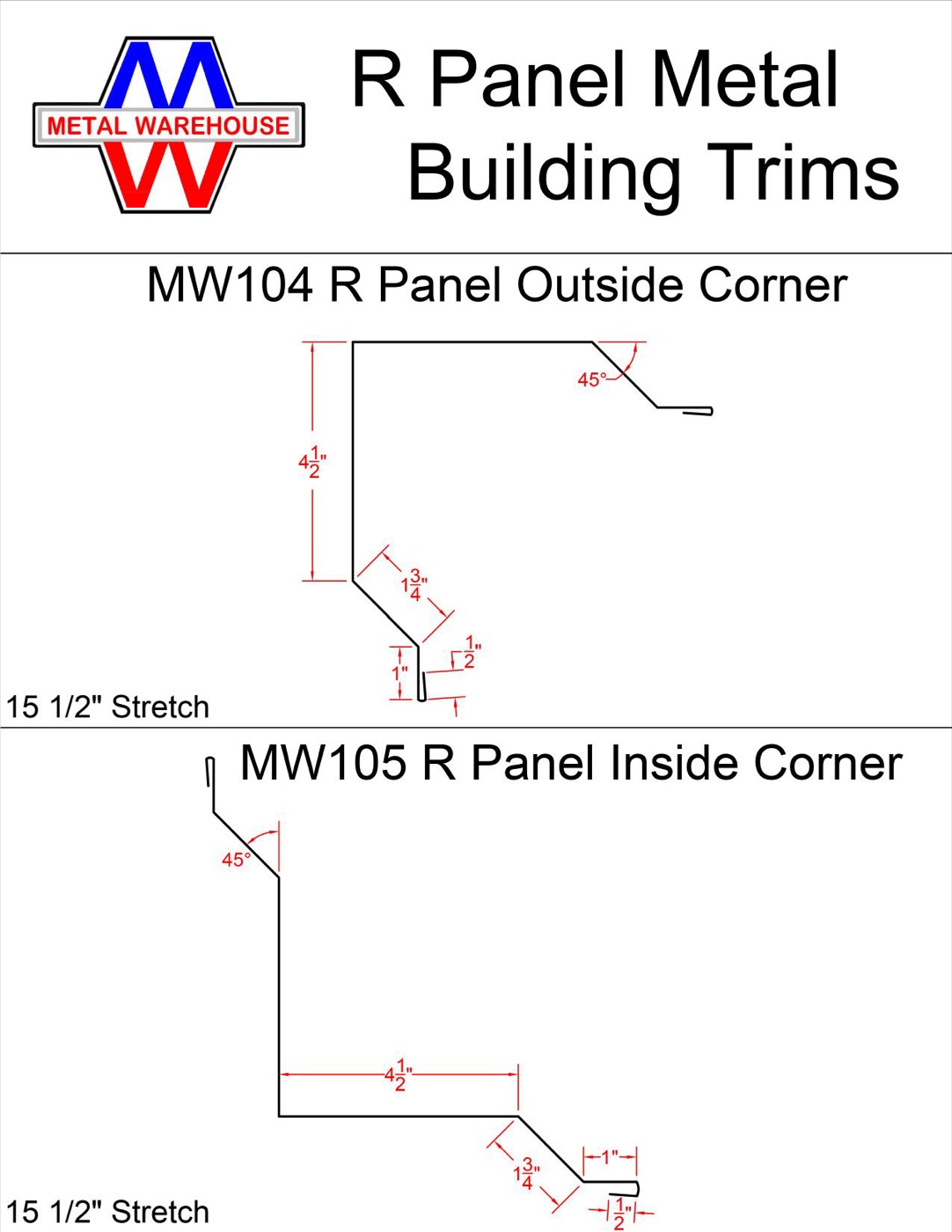

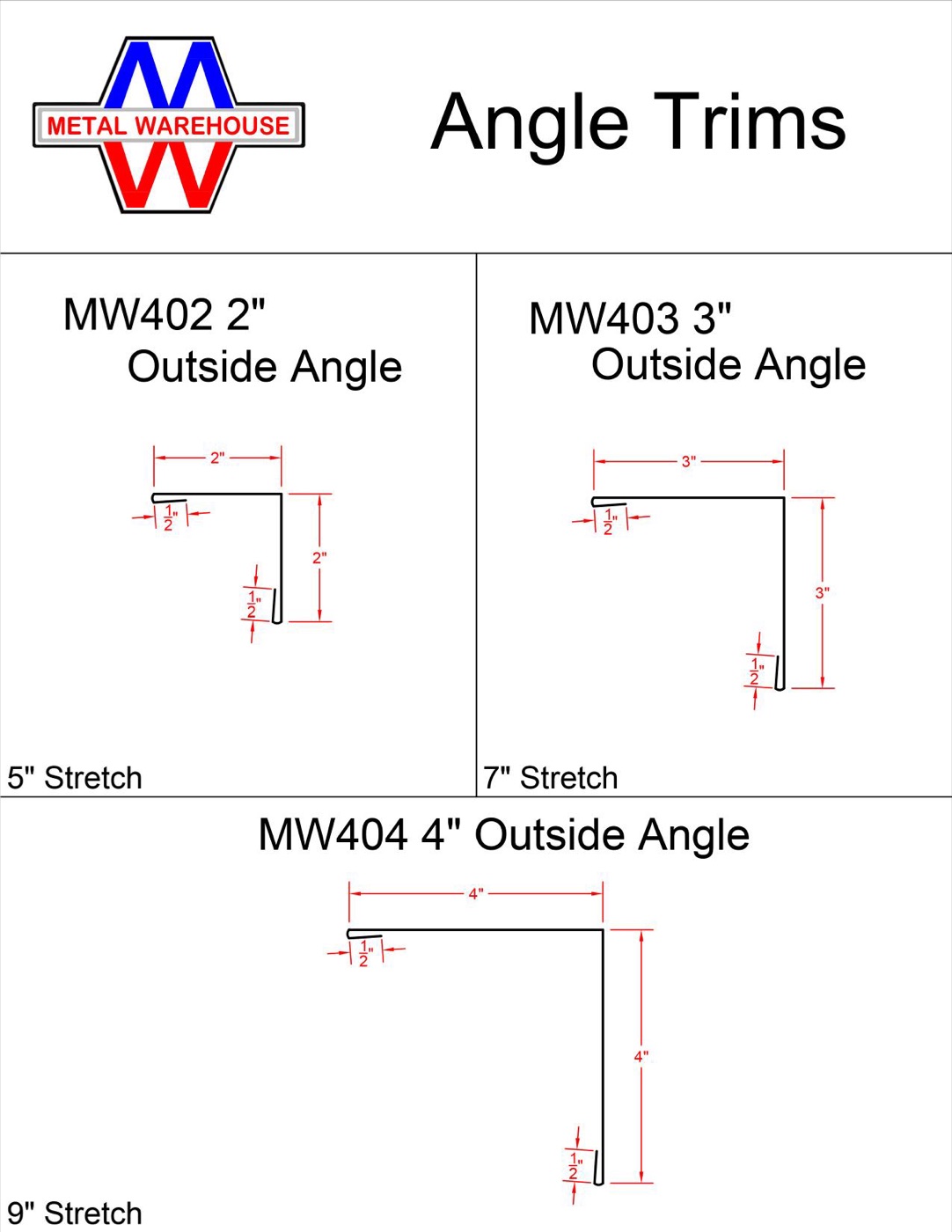

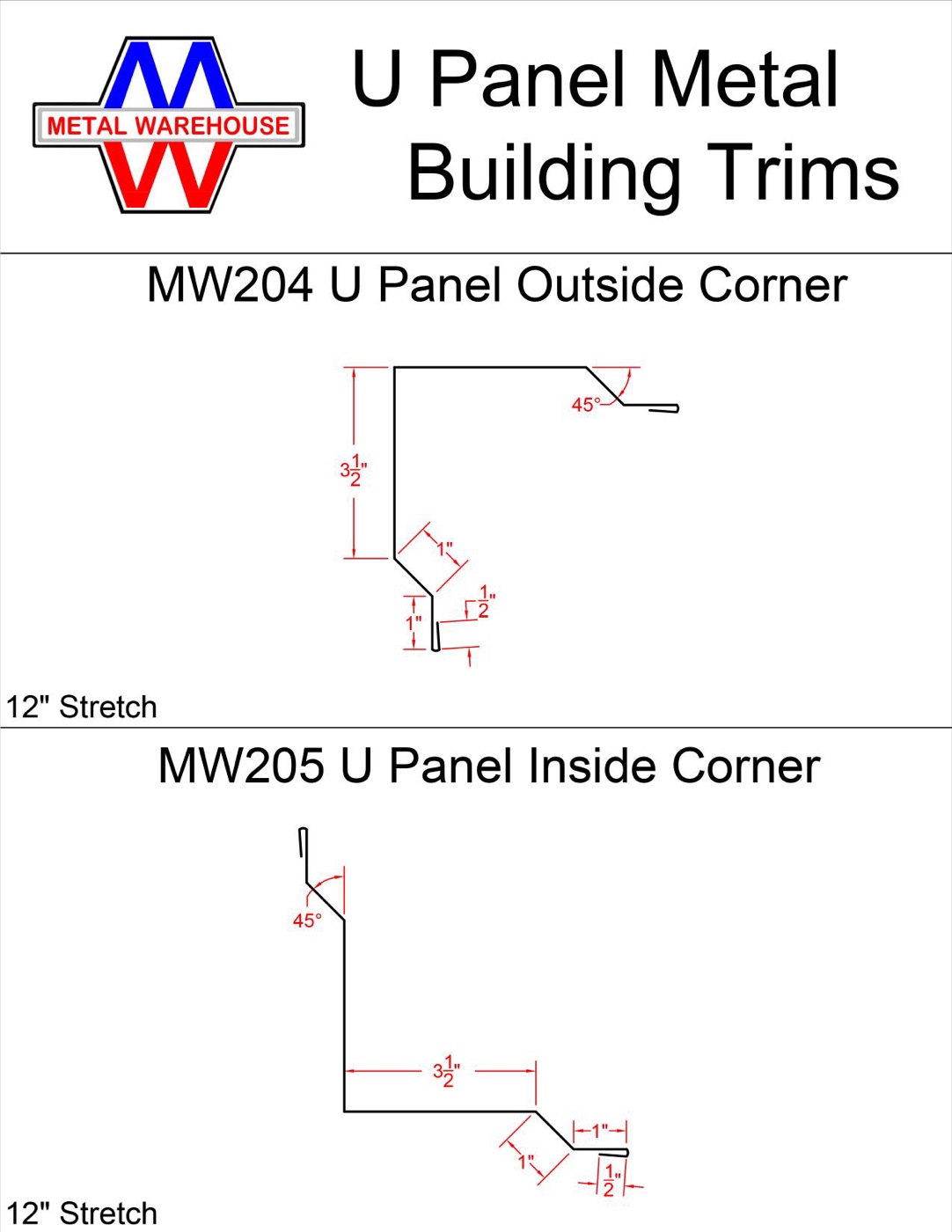

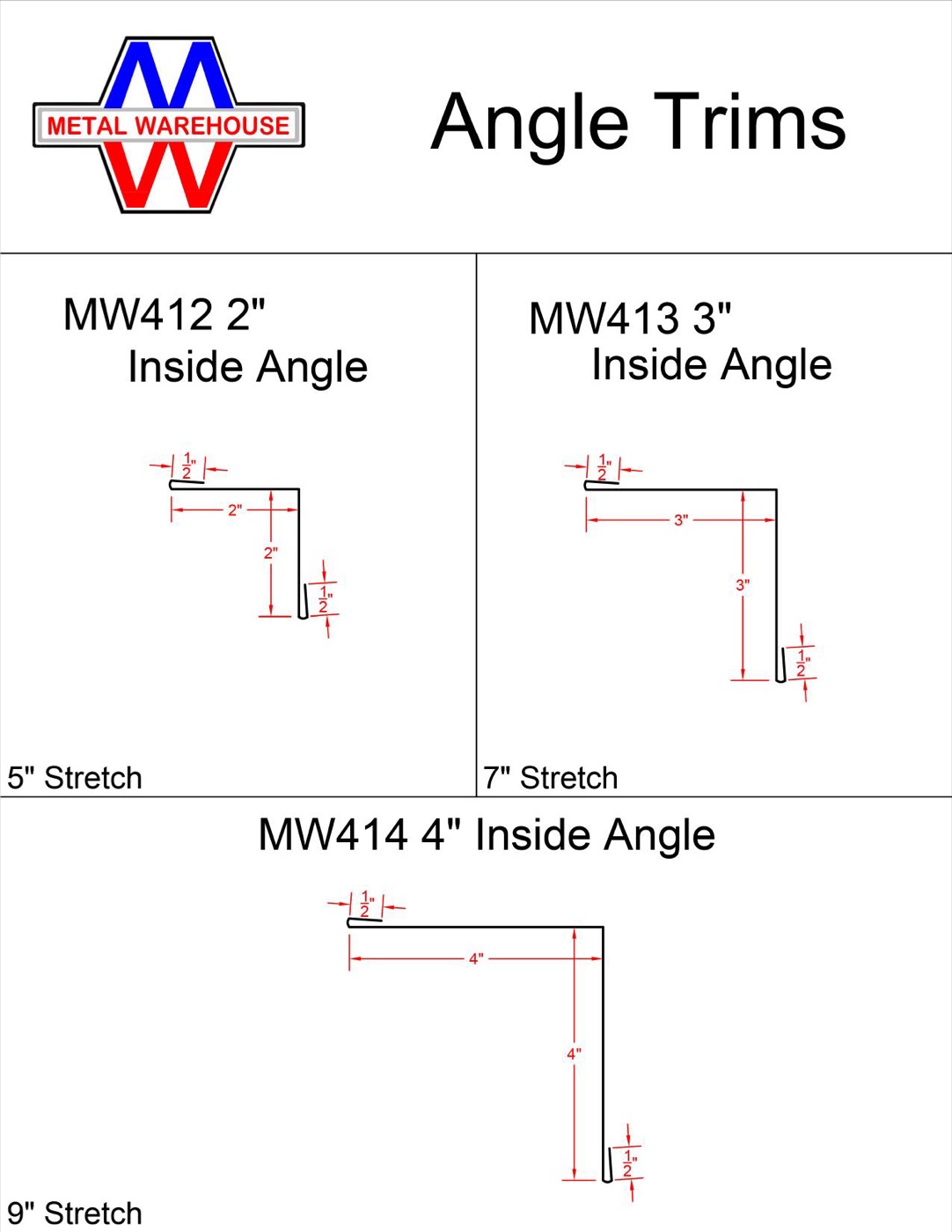

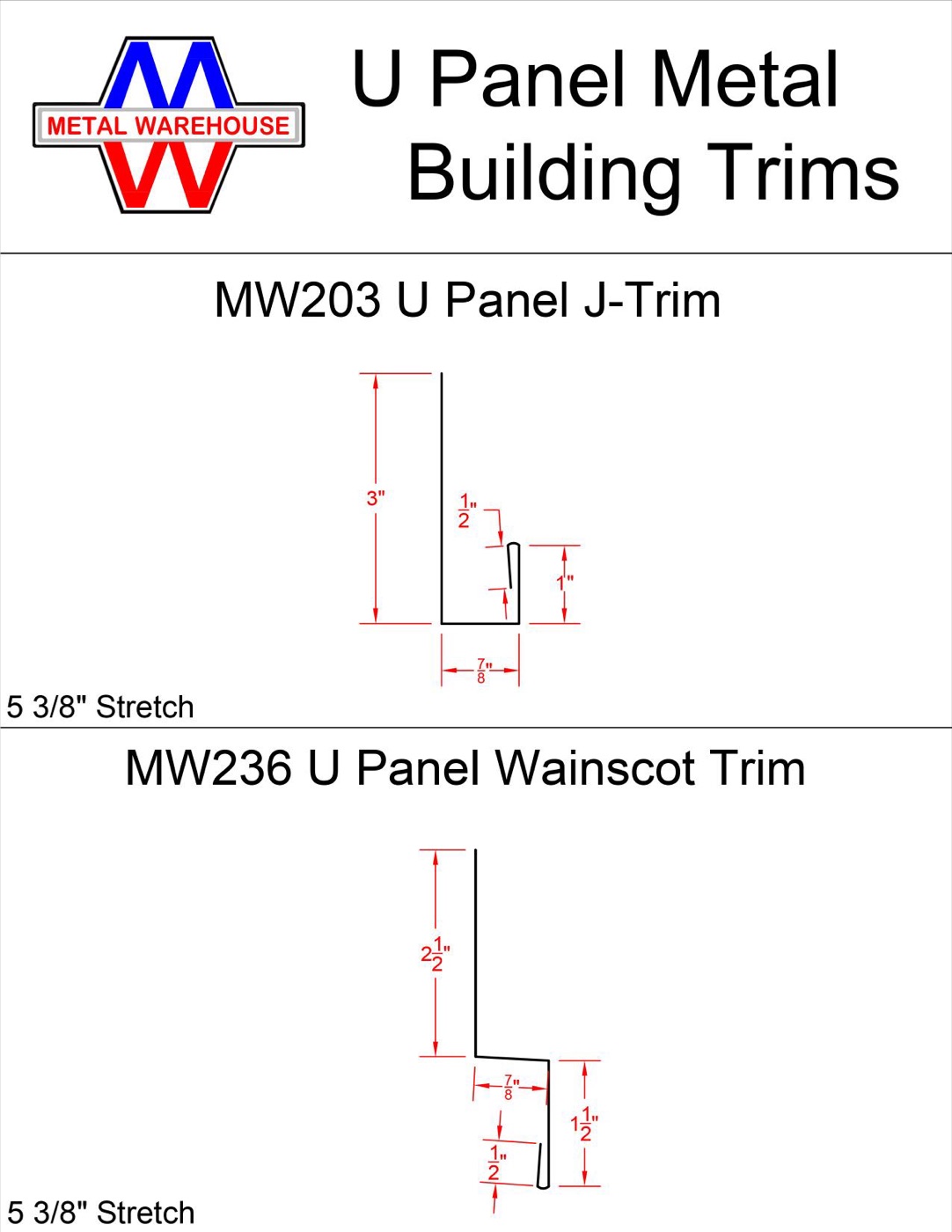

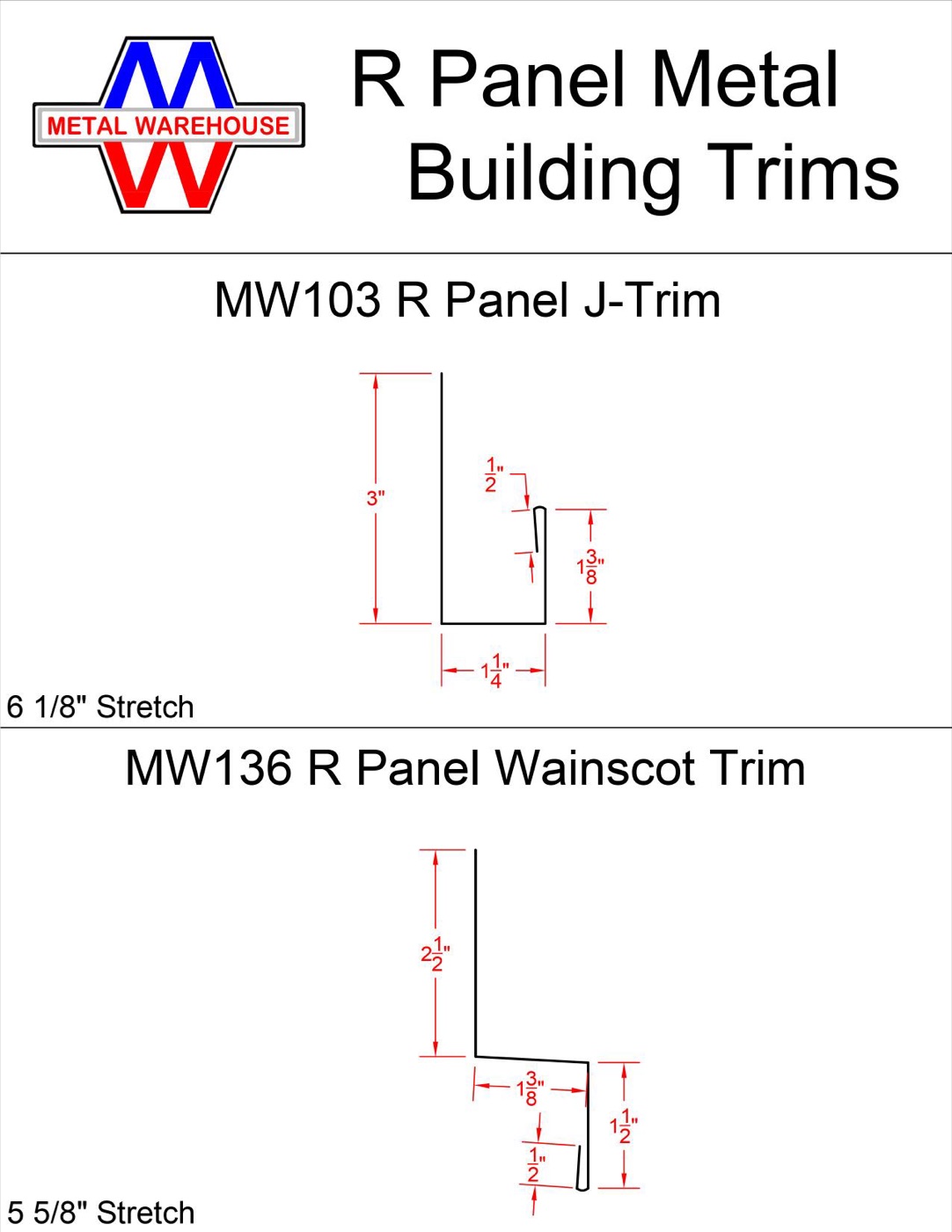

Corner & J-Channel
Wraps outside corners and frames openings so panel ends are tucked in and sealed.

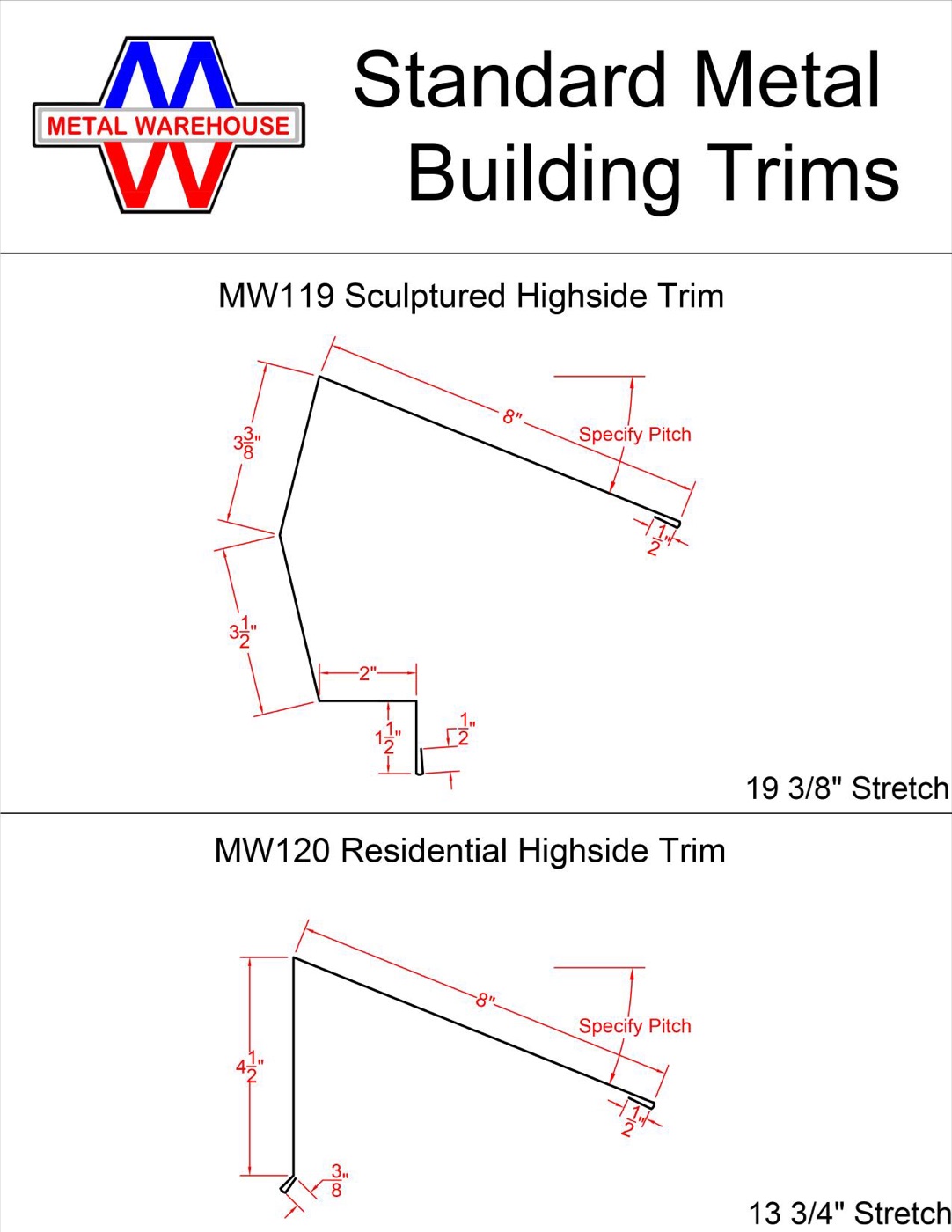

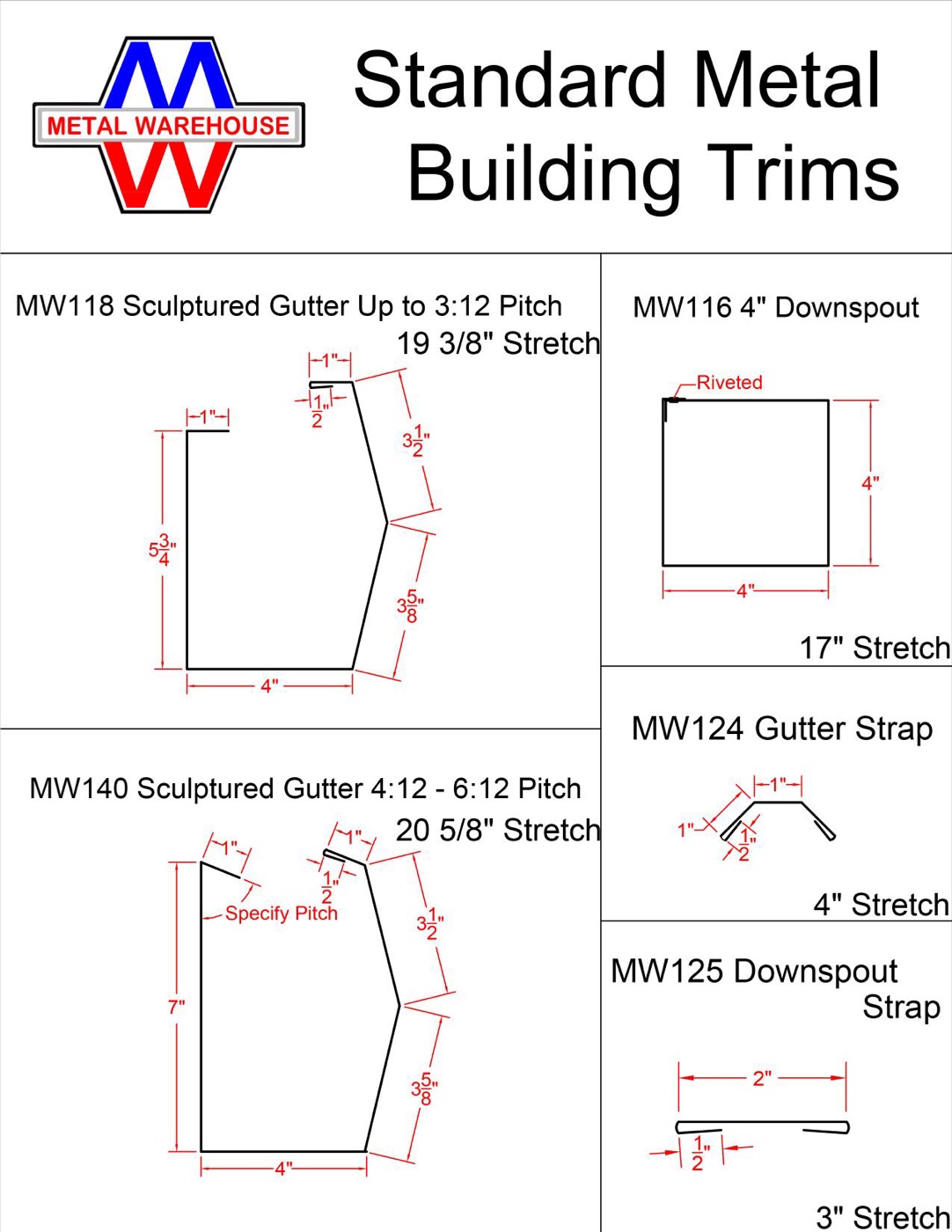

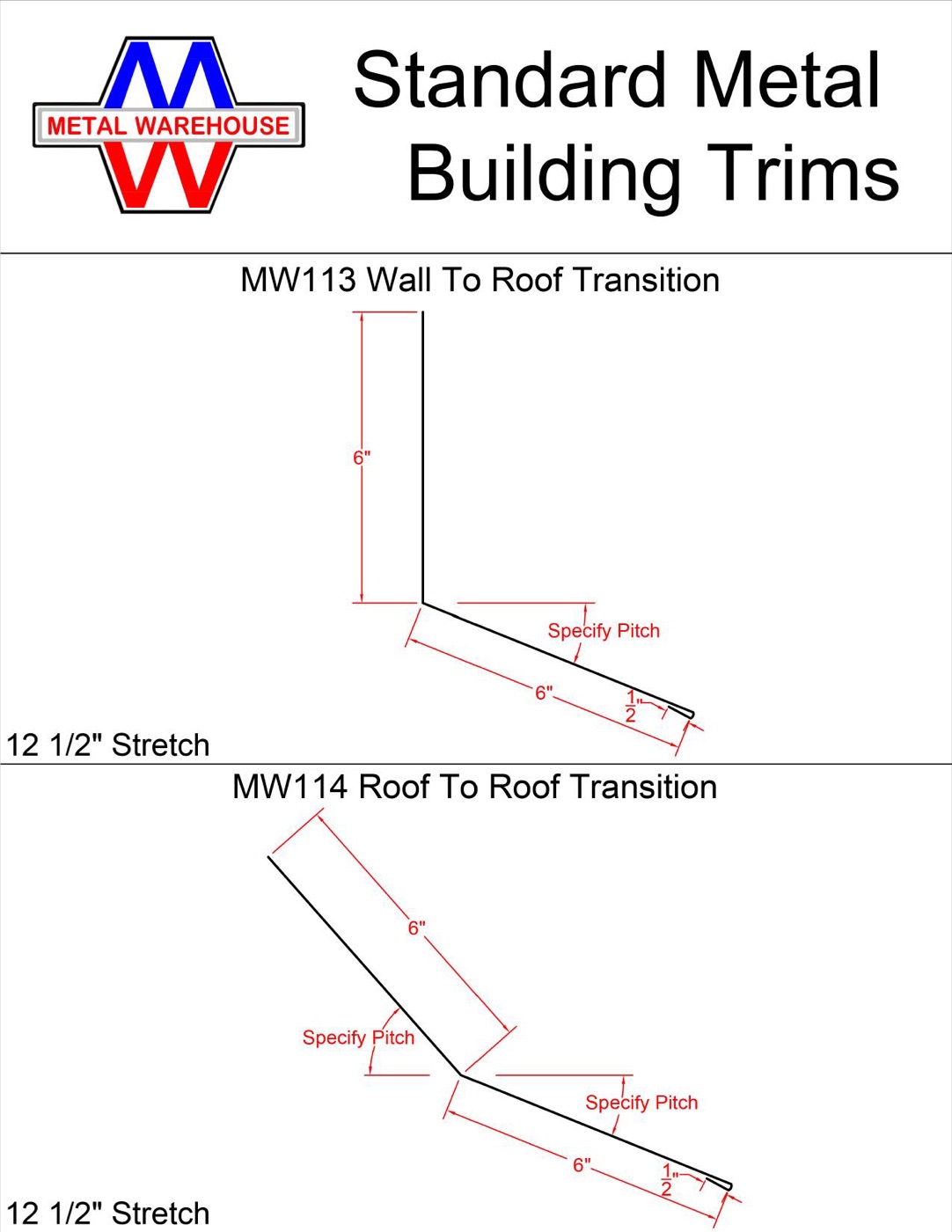

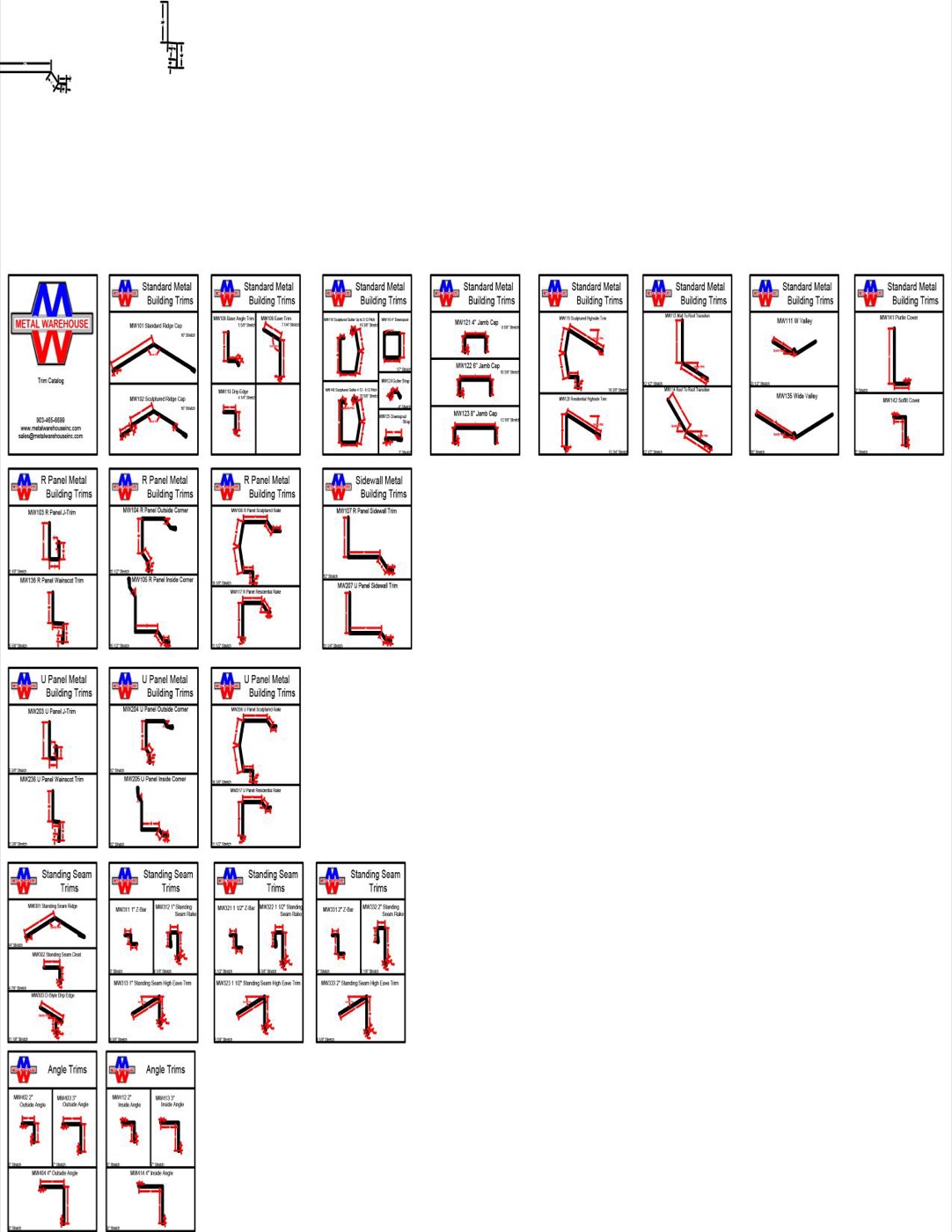

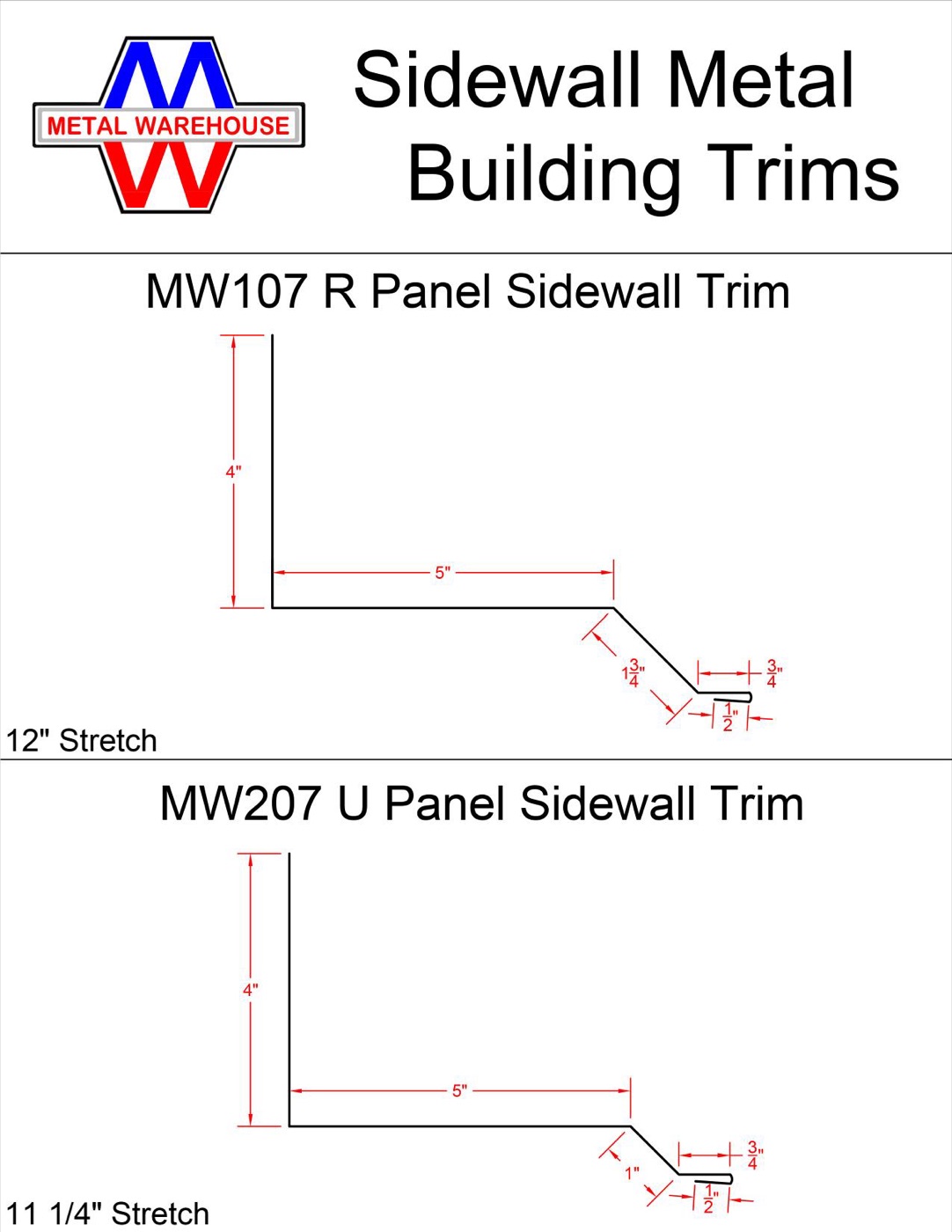

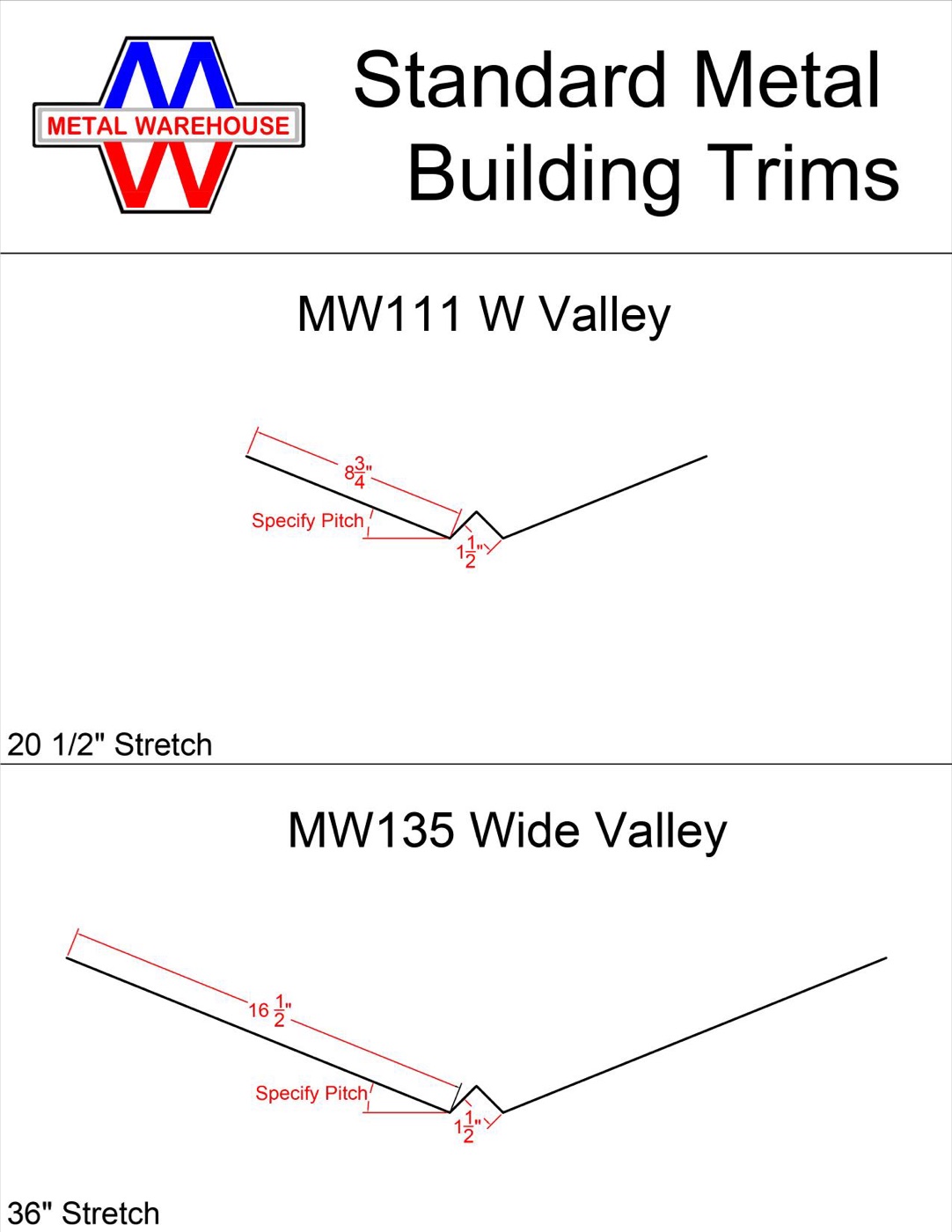

The full book above shows all 23 pages of available profiles and dimensions. If you need a profile that is not in the catalog, we bend custom trim to your drawing in-house, cut to length and color-matched to your panels.
