About 1.5" B-Deck

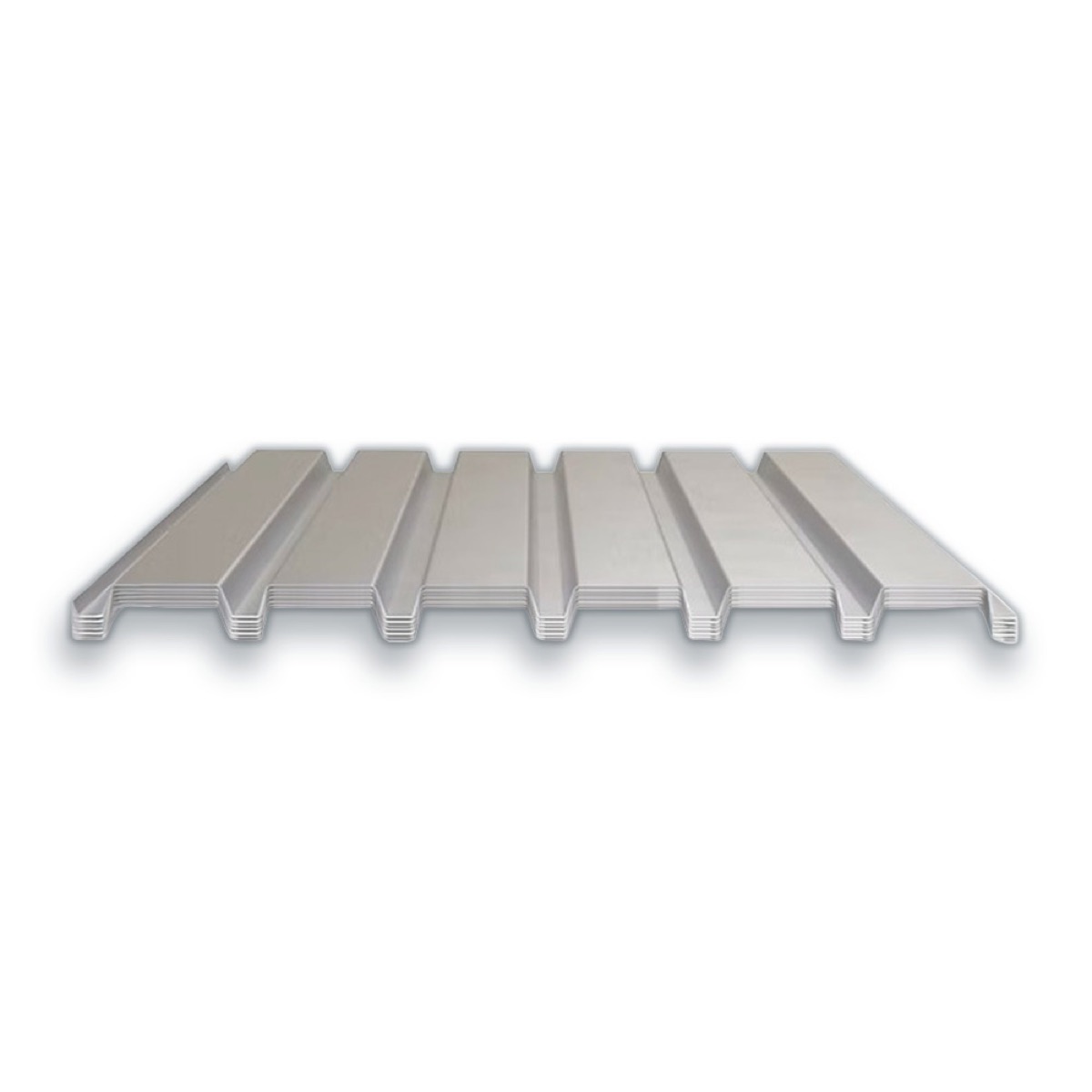

1.5" B-Deck
B-Deck is the standard structural steel roof and floor deck panel for commercial and industrial construction. Metal Warehouse Inc. stocks 1.5" B-Deck in multiple gauges for contractors across North Texas and Southern Oklahoma.

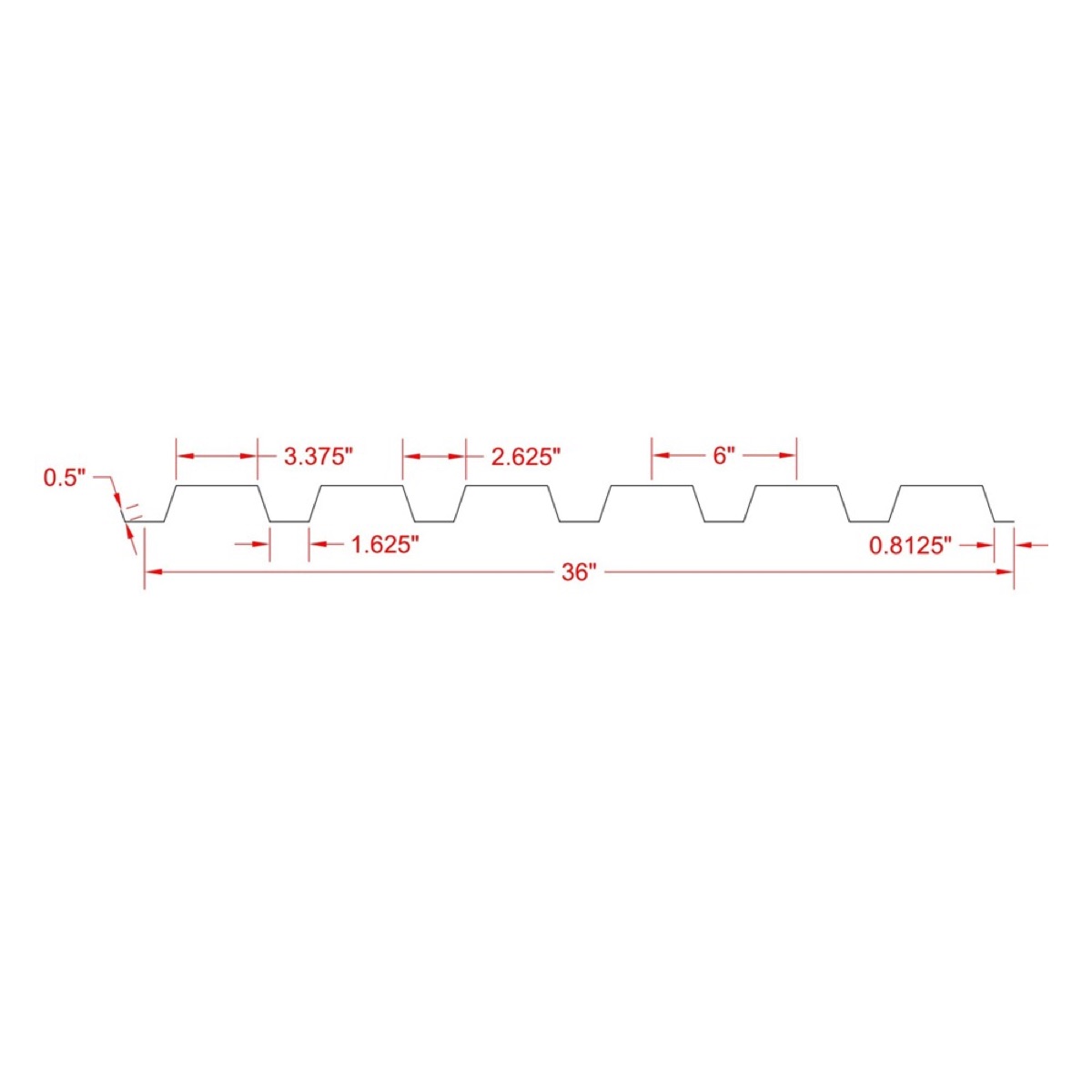

1.5 inch B-Deck (also called Type B deck) is a structural steel panel with a 1-1/2 inch rib height at 6 inch centers and 36 inch coverage, with a 3-3/8 inch top flange, a 2-5/8 inch bottom flange, and a nesting side lap. It is designed to span between structural framing members and serve as the base for built-up roofing systems or composite concrete floor slabs. B-Deck is engineered for structural load capacity, not just weather resistance.
Panel Data
B-Deck Technical Specifications
Roll-formed on-site in Sherman, TX and cut to your exact length.
| Coverage Width | 36 inches |
| Rib Height | 1-1/2 inches |
| Rib Spacing | 6 inches on center |
| Flanges | Top flange 3-3/8 inches, bottom flange 2-5/8 inches |
| Side Lap | Nesting side lap |
| Standard Gauges | 22, 20 and 18 gauge galvanized |
| Finish | G-60 galvanized standard; G-90 galvanized special order |
| Standard Lengths | Cut to order, plus standard stock lengths |
| Attachment | Puddle welds to structural steel; screw attachment in some applications |
| Code Reference | SDI (Steel Deck Institute) standards; AISC compatible |
Where It Fits
Common Applications for B-Deck
Contractors, builders, and owner-builders across North Texas and Southern Oklahoma use B-Deck across a range of projects:
- Commercial and industrial roofing substrates (under BUR, TPO, EPDM)
- Composite concrete floor decks in multi-story construction
- Mezzanine floors in warehouses and industrial buildings
- Long-span roof decking between purlins or joists
- Structural roof systems for office buildings and retail
- Re-roofing over existing structural deck systems
The Advantages
Why Choose B-Deck
Higher load capacity per unit weight than standard roofing panels
Approved for composite deck applications with concrete topping
Wide availability in standard gauges
Compatible with most commercial roofing membrane systems
Color & Protection
Available Finishes & Coatings
Exact finish options vary by profile - call us to confirm what is available for B-Deck.
Silicone-modified polyester, our standard painted finish. 40-year paint warranty, 17 stock colors.
Premium painted finish on our 24 gauge standing seam panels. 35-year warranty, superior color and chalk resistance.
Unpainted zinc-aluminum alloy coating. Available on structural deck and 24 gauge standing seam.
G-60 standard or G-90 special order on deck products; G90 on structural framing members.
Common Questions
B-Deck FAQs
Can you cut B-Deck panels to length?
Yes. We roll-form most of our panel profiles on-site at our Sherman, TX facility and cut them to your specified length, so you get an exact fit with minimal waste and no freight damage. Most orders are ready in 1-5 business days.
What colors and finishes are available for B-Deck?
Painted panels use Sherwin-Williams SMP with a 40-year paint warranty, in 17 stock colors: 14 standard and 3 premium. Our 24 gauge standing seam profiles are also available in Galvalume or PVDF (Kynar). Exact options vary by profile, so call us to confirm what is available for B-Deck.
Do you deliver B-Deck panels?
Yes - we deliver throughout North Texas and Southern Oklahoma. Delivery cost depends on your location and order size, and you are welcome to pick up at our Sherman, TX yard. Call (903) 465-6699 for a delivery quote.
Get an Estimate for B-Deck
Tell us your panel length, quantity, color, and gauge. We roll-form most panels on-site and can have material ready in 1-5 business days.
