About C-Purlins
About C-Purlins
C-Purlins are the secondary structural members that run between the primary frames of a metal building, supporting the roof and wall panels and carrying that load back to the main frame. Metal Warehouse Inc. roll-forms them in Sherman, TX in five web depths and three gauges, cut to your length.
A C-Purlin is a cold-formed Cee section: a flat web with a flange turned in at the top and bottom. It bolts to clips on the primary frame and gives the roof and wall sheeting something to fasten to, spreading panel loads back into the columns and rafters. We make them with web depths of 4, 6, 8, 10 and 12 inches and flange depths from 2 to 4 inches, in 12, 14 and 16 gauge, pre-punched with 5/8 by 1 inch slots so they bolt up without field drilling. Finish is your choice of red oxide primer or galvanized G90. Engineered load tables are available on request, so you can size the member to the span rather than guessing at it.
The Details
C-Purlins Specifications
| Profile | Standard Cee section |
| Web Depths | 4", 6", 8", 10" and 12" |
| Flange Depths | 2", 2-1/2", 3", 3-1/2" and 4" |
| Gauges | 12, 14 and 16 gauge |
| Punch Slots | 5/8" x 1" |
| Finish | Red oxide primer or galvanized G90 |
| Lengths | Cut to length |
| Engineering | Engineered load tables available on request |
In the Field
Common Applications
Contractors and fabricators across North Texas and Southern Oklahoma put c-purlins to work on jobs like these:

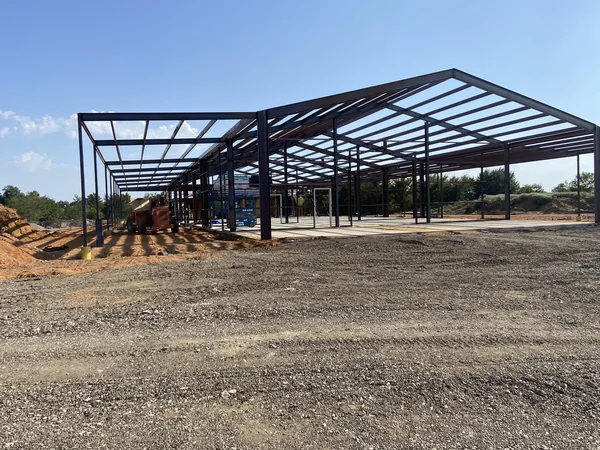

- Secondary roof framing between primary frames
- Wall girts on pre-engineered and weld-up buildings
- Post-frame and agricultural building framing
- Re-roof and retrofit purlin runs over an existing structure
- Equipment shelters and open-sided canopies
Why Metal Warehouse
Why Choose C-Purlins
Five web depths and three gauges, so the member matches the span instead of over-spending on steel
Pre-punched 5/8 by 1 inch slots, so it bolts up without field drilling
Primed or galvanized, whichever the building and the environment call for
Roll-formed and cut to length in Sherman, not shipped in from out of state
Get a Quote for C-Purlins
Tell us the shapes, sizes, gauges, and quantities you need. We stock most structural steel and can source the rest in under a week. Serving contractors throughout North Texas and Southern Oklahoma from our Sherman warehouse.
